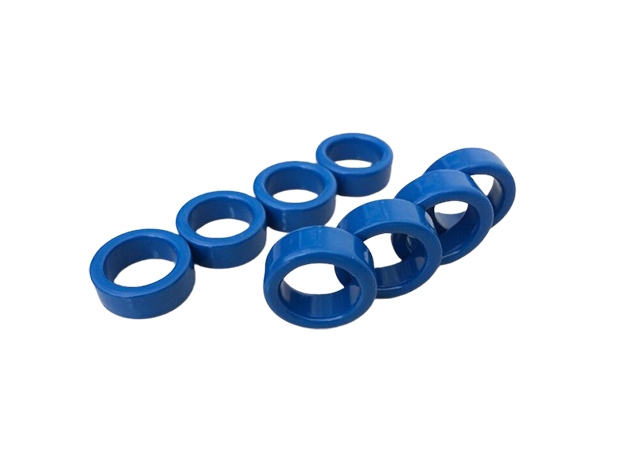

Precision Nanocrystalline Cores for Potential Transformer (PT)
Potential Transformer(PT), also called Voltage Transfromer(VT), is an instrument transformer used in power systems for voltage transformation. It converts higher voltage values to lower voltage values for measurement and protection purposes. And the Nanocrystalline Cores are widely the Potential/Voltage Transformer.
- Trade Mark: SHOUCORE
- Cores Size: Standard or Customized Dimensions
- Certificates: ISO 9001:2015, RoHS, REACH
- Payment Terms: T/T or L/C
- Delivery time: Samples: 3~5 days; Batches: 7~30 days
Precision Nanocrystalline Cores for Potential Transformer (PT):
Potential Transformer(PT), also called Voltage Transfromer(VT), is an instrument transformer used in power systems for voltage transformation. It converts higher voltage values to lower voltage values for measurement and protection purposes. And the Nanocrystalline Cores are widely the Potential/Voltage Transformer.
Iron based nanocrystalline soft magnetic materials have similar initial permeability and temperature stability with Permalloy material, beside, it has smaller specific gravity and lamination coefficient than Permalloy material, and nanocrystalline cores has the lower weight and lower price than Permalloy under the condition of the same core size and performance.
Features:
1) High permeability.
2) High Saturatuion induction.
3) Excellent temperature stability – from -55 ℃ to 130 ℃.
4) Lower manufacturing costs.
Applications:
- Precision Potential Transformer (PT)
- Instruments and Apparatus
Specifications:
Nanocrystalline Cores are widely used for the Potential Transformer (PT).
| Part No. | Core size | Finished size (mm) | （Ae） | （Le） |
| OD*ID*H (mm) | OD*ID*H (mm) | cm2 | cm | |
| SC-PT010 | 13*9.5*4.5 | 14.3*8.4*6.6 | 0.064 | 3.53 |
| SC-PT014-1 | 19*14*6.5 | 22.8*12.0*8.8 | 0.133 | 5.18 |
| SC-PT014-2 | 19*14*8 | 22.8*12.0*10.3 | 0.164 | 5.18 |
| SC-PT014-A | 20*14*8 | 22.8*11.8*9.9 | 0.196 | 5.33 |
| SC-PT014-B | 20*14*10 | 22.8*11.8*11.9 | 0.24 | 5.33 |
| SC-PT015 | 21*15*10 | 23.6*12.7*12.8 | 0.24 | 5.65 |
Note: 1) The CT cores can be customized according to the specific size and performance requirements of users.
2) Plastic case or Epoxy coating is available.
