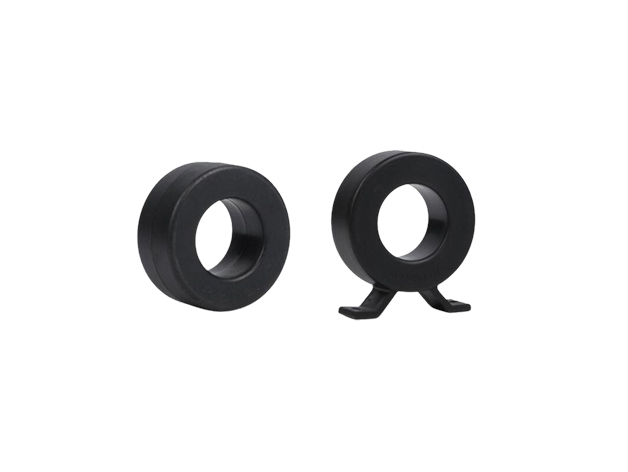

Nanocrystalline Transformer Cores For Switch Mode Power Supply (SMPS)

The nanocrystalline alloy transformer cores applied in switch mode power supply has the advantages of high permeability, high saturation flux density Bs and high frequency low loss, so it is an ideal material for the main transformer of uni-polar, push-pull or bi-polar type of high frequency switching power supply.

  • Check Mark Trade Mark: SHOUCORE
  • Check Mark Cores Size: Standard or Customized Dimensions
  • Check Mark Certificates: ISO 9001:2015, RoHS, REACH
  • Check Mark Payment Terms: T/T or L/C
  • Check Mark Delivery time: Samples: 3~5 days; Batches: 7~30 days
Category: Tags: , ,

Nanocrystalline Transformer Cores For Switch Mode Power Supply:

The nanocrystalline alloy transformer cores applied in switch mode power supply has the advantages of high permeability, high saturation flux density Bs and high frequency low loss, so it is an ideal material for the main transformer of uni-polar, push-pull or bi-polar type of high frequency switching power supply.

Features:

  1. High saturate induction—reduce volume of transformers.
  2. High permeability and low coercivity—improve efficiency, lower exciting power and reduce copper loss.
  3. Low core loss—reduce temperature rise of transformers.
  4. Excellent temperature stability—with the serving temperature of -55℃~130℃ for long time.

Applications:

  • Inverter welding machine
  • X-ray, laser, communication power supply
  • UPS power supply
  • Electrolytic and electroplate power supply
  • Charging power supply
  • High frequency heating systems

Specifications:

Part No. Core size(mm) Finished size(mm) Ac(cm2) Le(cm) Weight(g) Power(KW) 20KHz
ID OD H ID OD H
SC-HFT-002 40 64 20 37 66 23 1.77 16.3 215 0.8—1.4
SC-HFT-004 40 70 25 37 73 28 2.42 17.3 310 1.2—2.0
SC-HFT-008 50 75 25 47 78 28 2.13 19.6 310 1.2—2.1
SC-HFT-009 50 80 20 47 83 23 2.18 20.4 330 1.3—2.2
SC-HFT-010 50 80 25 47 83 28 2.65 20.4 400 1.6—2.7
SC-HFT-006 40 80 30 37 83 33 4.5 18.8 625 2.5—4.2
SC-HFT-007 40 90 20 37 93 23 3.64 20.4 550 2.2—3.8
SC-HFT-011 50 90 30 46 94 34 4.42 21.98 720 3.0—4.8
SC-HFT-013 50 100 25 46 104 29 4.63 23.55 810 3.5—5.2
SC-HFT-019 70 120 30 65 125 35 5.55 29.83 1225 5.8—8.0
SC-HFT-022 80 120 20 75 125 25 2.96 31.4 688 2.8—4.6
SC-HFT-023 80 120 25 75 125 30 3.7 31.4 860 3.5—5.2
SC-HFT-024 80 120 30 75 125 35 4.44 31.4 1032 4.2—7.0
SC-HFT-030 90 130 30 85 136 35 4.44 34.54 1135 5.0—8.0
SC-HFT-031 90 130 50 85 136 55 7.2 34.54 1850 8—13
SC-HFT-041 100 140 40 94 146 30 5.76 37.68 1610 7.0—12

Note: Nanocrystalline Cores can be customized according to the specific size and performance requirements of user.
