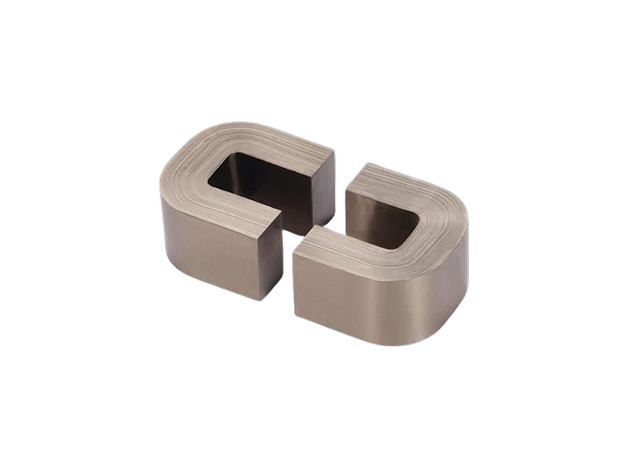

Nanocrystalline Tape Wound Cut Cores (C-Core)
Tape Wound Cut Cores are made from Fe-based nanocrystalline alloys offer an interesting combination of high saturation flux density, low magnetization losses and high permeabilities. Nanocrystaline C Cores perform better than amorphous C Cores. Suitable for high frequency transformer, high class audio transformer, PFC choke, output inductors.
- Trade Mark: SHOUCORE
- Cores Size: Standard or Customized Dimensions
- Certificates: ISO 9001:2015, RoHS, REACH
- Payment Terms: T/T or L/C
- Delivery time: Samples: 3~5 days; Batches: 7~30 days
Nanocrystalline Tape Wound Cut Cores ：
Tape Wound Cut Cores are made from Fe-based nanocrystalline alloys offer an interesting combination of high saturation flux density, low magnetization losses and high permeabilities. Nanocrystaline C-Cores perform better than amorphous C-Cores. Suitable for high frequency transformer, high class audio transformer, PFC choke, output inductors.
Features:
1) High saturate induction(Bs 1.25T, much higher than ferrite core)
2) Low core loss than amorphous alloy.
3) Easy for coil assembling.
4) Low magnetostriction with low noise
Applications:
- High frequency switch mode power supply
- Reactor cores for wind inverter and solar inverter
- High frequency transformer

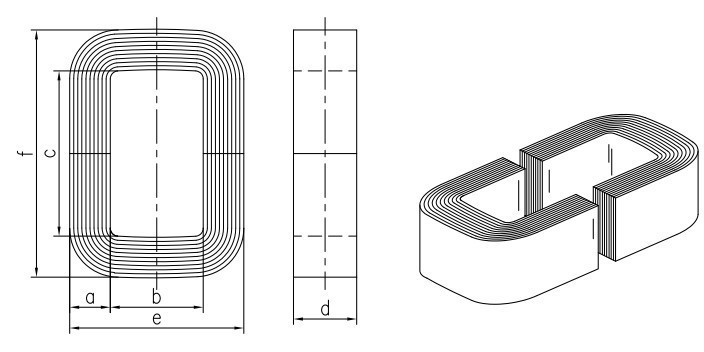

Specifications:
| Item No. | a(mm) | b(mm) | c(mm) | d(mm) | e(mm) | f(mm) | Le(cm) | Ac(cm2) | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|
| SC-NACC-002 | 8±0.5 | 14 | 31 | 40±0.5 | 30±1 | 47±2 | 11.5 | 2.56 | 260 |
| SC-NACC-003 | 10±0.5 | 11 | 33 | 20±0.5 | 31±1 | 53±2 | 13.1 | 1.59 | 150 |
| SC-NACC-005 | 11±0.8 | 13 | 30 | 20±0.5 | 35±1 | 52±2 | 13.2 | 1.79 | 170 |
| SC-NACC-007 | 11±0.8 | 13 | 50 | 25±0.5 | 35±1 | 72±2 | 17.1 | 2.31 | 280 |
| SC-NACC-011 | 13±0.8 | 15 | 56 | 25±0.5 | 41±1 | 82±2 | 19.6 | 2.7 | 380 |
| SC-NACC-013 | 16±0.8 | 20 | 70 | 25±0.5 | 52±1 | 102±2 | 24.9 | 3.3 | 590 |
| SC-NACC-017 | 19±1 | 25 | 83 | 40±1 | 63±1 | 121±3 | 28.5 | 6.5 | 1330 |
| SC-NACC-019 | 20±1 | 24.5 | 82 | 50±1 | 65±1 | 121±3 | 29.8 | 8.1 | 1670 |
| SC-NACC-021 | 22±1 | 35 | 85 | 65±1 | 79±1 | 129±3 | 30.9 | 11.4 | 2820 |
| SC-NACC-023 | 25±1 | 40 | 85 | 65±1 | 90±1 | 135±3 | 32.9 | 11 | 2900 |
| SC-NACC-025 | 30±1 | 30 | 90 | 30±1 | 90±1 | 150±3 | 33.4 | 7.2 | 2030 |
Note: The nanocrystalline cut cores can be customized according to the specific size and performance requirements of users
