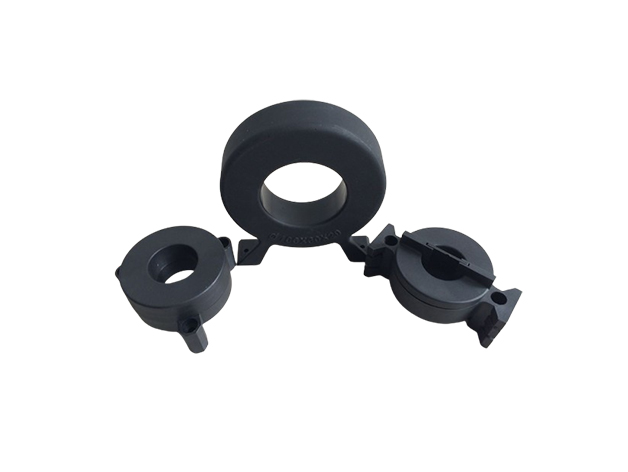

Nanocrystalline Magentic Transformer Core For UPS Power Supply
The power transformer is one of the core components of the UPS power supply, its role is to convert the input power to the required output voltage, and protect the load equipment from interference and noise.The naonocrystalline magnetic transformer cores with high saturate induction that reduce volume of transformers.
- Trade Mark: SHOUCORE
- Cores Size: Standard or Customized Dimensions
- Certificates: ISO 9001:2015, RoHS, REACH
- Payment Terms: T/T or L/C
- Delivery time: Samples: 3~5 days; Batches: 7~30 days
Nanocrystalline Magentic Transformer Core For UPS Power Supply :
The power transformer is one of the core components of the UPS power supply, its role is to convert the input power to the required output voltage, and protect the load equipment from interference and noise.The naonocrystalline magnetic transformer cores with high saturate induction that reduce volume of transformers.
Features:
- High saturate induction—reduce volume of transformers.
- High permeability and low coercivity—improve efficiency, lower exciting power and reduce copper loss.
- Low core loss—reduce temperature rise of transformers.
- Excellent temperature stability—with the serving temperature of -55℃~130℃ for long time.
Applications:
- Inverter welding machine
- X-ray, laser, communication power supply
- UPS power supply
- Electrolytic and electroplate power supply
- Charging power supply
- High frequency heating systems
Specifications:
| Item No. | Core Dimensions IDxODxH(mm) | Finish Dimensions IDxODxH(mm) | Le(cm) | Ae(cm2) | Weigth(g) | Power(kw) |
|---|---|---|---|---|---|---|
| SC-NAHF-25 | 25x40x20 | 21.4×44.64×24.72 | 10.2 | 1.12 | 83.2 | 1-1.5 |
| SC-NAHF-32 | 32x50x20 | 28.4×53.7×24 | 12.87 | 1.35 | 126 | 1-1.5 |
| SC-NAHF-40A | 40x64x20 | 36.9×67.8×24.1 | 16.32 | 1.8 | 213 | 1-2 |
| SC-NAHF-40B | 40x70x20 | 36x75x25 | 17.27 | 2.25 | 281 | 1-2 |
| SC-NAHF-50A | 50x80x25 | 47.1×84.1×29.3 | 20.41 | 2.81 | 416 | 3 |
| SC-NAHF-50B | 50x100x25 | 45x105x44 | 23.55 | 4.68 | 800 | 8 |
| SC-NAHF-60A | 60x105x30 | 57x110x35 | 25.9 | 5.06 | 950 | 8-10 |
| SC-NAHF-60B | 60x110x30 | 55x115x35 | 26.7 | 5.62 | 1088 | 8-10 |
| SC-NAHF-60C | 60X120x30 | 57x125x35 | 28.26 | 6.75 | 1382 | 12-15 |
| SC-NAHF-70 | 70x120x20 | 64.8×125.7×25.5 | 29.83 | 3.75 | 811 | 10 |
| SC-NAHF-80A | 80x130x40 | 76x136x45 | 32.97 | 7.5 | 1792 | 15-20 |
| SC-NAHF-80B | 80x130x50 | 76x136x55 | 32.97 | 9.37 | 2240 | 20-25 |
| SC-NAHF-90 | 90x130x50 | 85x136x56 | 34.54 | 7.5 | 1878 | 20-25 |
Note: Nanocrystalline Transformer Cores can be customized according to the specific size and performance requirements of user.
