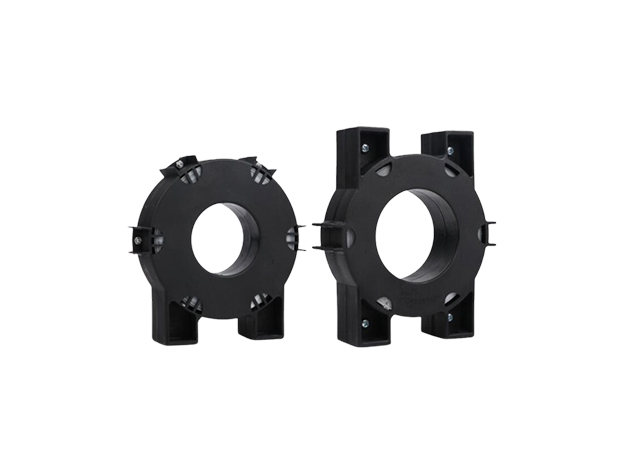

Nanocrystalline Cores For High Frequency Power Transformer
Iron-based Nanocrystalline alloys have a combination advantages of silicon steel, permalloy and ferrite, the working frequency of high frequency inverter power supply is 20 kHz ~ 50 kHz. Nanocrystalline alloy cores have excellent comprehensive magnetic properties, especially applicable in high-power and high-frequency power transformer.
- Trade Mark: SHOUCORE
- Cores Size: Standard or Customized Dimensions
- Certificates: ISO 9001:2015, RoHS, REACH
- Payment Terms: T/T or L/C
- Delivery time: Samples: 3~5 days; Batches: 7~30 days
Nanocrystalline Cores For High Frequency Power Transformer:
Iron-based Nanocrystalline alloys have a combination advantages of silicon steel, permalloy and ferrite, the working frequency of high frequency inverter power supply is 20 kHz ~ 50 kHz, as the heart of main power supply transformer, although the traditional ferrite core material loss at high frequency is low, but the permeability of below 100 kHz frequency is relatively low, and its saturation magnetic flux density value (Bs) is also low, the volume and weight of the iron core is still large. In addition, because of low Curie temperature, weak thermal stability, Bs value decreases quickly when little temperature rise, easy to saturation and working condition is not stable, ferrite is not suitable for high frequency power. Nanocrystalline alloy cores have excellent comprehensive magnetic properties, especially applicable in high-power and high-frequency power transformer.
Features:
- High saturate induction—reduce volume of transformers.
- High permeability and low coercivity—improve efficiency, lower exciting power and reduce copper loss.
- Low core loss—reduce temperature rise of transformers.
- Excellent temperature stability—with the serving temperature of -55℃~130℃ for long time.
Applications:
- Inverter welding machine
- X-ray, laser, communication power supply
- UPS power supply
- Electrolytic and electroplate power supply
- Charging power supply
- High frequency heating systems
Specifications:
| Part No. | Core size(mm) | Finished size(mm) | Ac(cm2) | Le(cm) | Weight(g) | Power(KW) 20KHz | ||||
| ID | OD | H | ID | OD | H | |||||
| SC-HFT-002 | 40 | 64 | 20 | 37 | 66 | 23 | 1.77 | 16.3 | 215 | 0.8—1.4 |
| SC-HFT-004 | 40 | 70 | 25 | 37 | 73 | 28 | 2.42 | 17.3 | 310 | 1.2—2.0 |
| SC-HFT-008 | 50 | 75 | 25 | 47 | 78 | 28 | 2.13 | 19.6 | 310 | 1.2—2.1 |
| SC-HFT-009 | 50 | 80 | 20 | 47 | 83 | 23 | 2.18 | 20.4 | 330 | 1.3—2.2 |
| SC-HFT-010 | 50 | 80 | 25 | 47 | 83 | 28 | 2.65 | 20.4 | 400 | 1.6—2.7 |
| SC-HFT-006 | 40 | 80 | 30 | 37 | 83 | 33 | 4.5 | 18.8 | 625 | 2.5—4.2 |
| SC-HFT-007 | 40 | 90 | 20 | 37 | 93 | 23 | 3.64 | 20.4 | 550 | 2.2—3.8 |
| SC-HFT-011 | 50 | 90 | 30 | 46 | 94 | 34 | 4.42 | 21.98 | 720 | 3.0—4.8 |
| SC-HFT-013 | 50 | 100 | 25 | 46 | 104 | 29 | 4.63 | 23.55 | 810 | 3.5—5.2 |
| SC-HFT-019 | 70 | 120 | 30 | 65 | 125 | 35 | 5.55 | 29.83 | 1225 | 5.8—8.0 |
| SC-HFT-022 | 80 | 120 | 20 | 75 | 125 | 25 | 2.96 | 31.4 | 688 | 2.8—4.6 |
| SC-HFT-023 | 80 | 120 | 25 | 75 | 125 | 30 | 3.7 | 31.4 | 860 | 3.5—5.2 |
| SC-HFT-024 | 80 | 120 | 30 | 75 | 125 | 35 | 4.44 | 31.4 | 1032 | 4.2—7.0 |
| SC-HFT-030 | 90 | 130 | 30 | 85 | 136 | 35 | 4.44 | 34.54 | 1135 | 5.0—8.0 |
| SC-HFT-031 | 90 | 130 | 50 | 85 | 136 | 55 | 7.2 | 34.54 | 1850 | 8—13 |
| SC-HFT-041 | 100 | 140 | 40 | 94 | 146 | 30 | 5.76 | 37.68 | 1610 | 7.0—12 |
Note: Nanocrystalline Power Transformer Cores can be customized according to the specific size and performance requirements of user.
