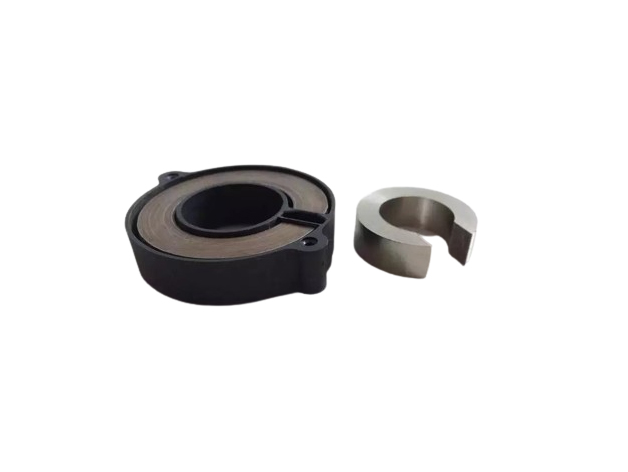

Gapped Amorphous Cores For Power Factor Correction (PFC) Inductor

Gapped Amorphous PFC Inductor cores:

At present, there are two types of magnetic cores suitable for making PFC inductors: ferrite cores and amorphous cores. Ferrite cores has been widely used in PFC inductors before, but with the development of high power, high frequency and low loss, Ferrite cores can not meet the requirements. Due to the high saturation value (Bs) of the amorphous material is 1.56T, which is three times that of ferrite materials. Under the same conditions of use, the inductance of amorphous cores can reach three times that of ferrite cores, and the volume is only half that of ferrite cores. Amorphous alloy have high Curie temperature and much better temperature stability than ferrite, and which is the ideal materials for making PFC inductors.

The PFC inductor cores (Power Factor Correction) with gap is based on the Fe-based amorphous alloys, and it has excellent characteristics of constant inductance and anti-DC magnetic bias, besides the loss is lower.

Features:

1) High saturation flux density (Bs 1.56T), low magnetic field strength (Hc) and low loss.
2) Excellent Anti-DC bias property.
3) Good constant inductance characteristics.

Applications:

• PFC choke
• Output filter inductor
• Solar inverter
• Hall effect transducer

Specifications:

Part No.	Core dimensions(mm)			Finished dimensions(mm)			Electronic Parameters
	ID	OD	H	ID	OD	H	AL(μH)	AT
SC-PFC12A	12	20	5	9.7	22.5	8	0.085	180
SC-PFC12B	12	20	8	9.7	22.5	11	0.12	180
SC-PFC16	16	26	10	14.3	30.2	13.5	0.132	280
SC-PFC20	20	32	10	17.5	34.5	13.5	0.12	350
SC-PFC25A	25	40	12.5	23	45	16	0.15	370
SC-PFC25B	25	40	15	23	45	19	0.2	370
SC-PFC32	32	50	15	29	55	18	0.126	470
SC-PFC40	40	64	15	37.8	67.5	19	0.16	600
SC-PFC50	50	80	20	47	85	24	0.2	730
SC-PFC56	56	92	25	53	97	29	0.25	800

Note: The Gapped Amorphous PFC Cores can be customized according to the specific size and performance requirements of users.
