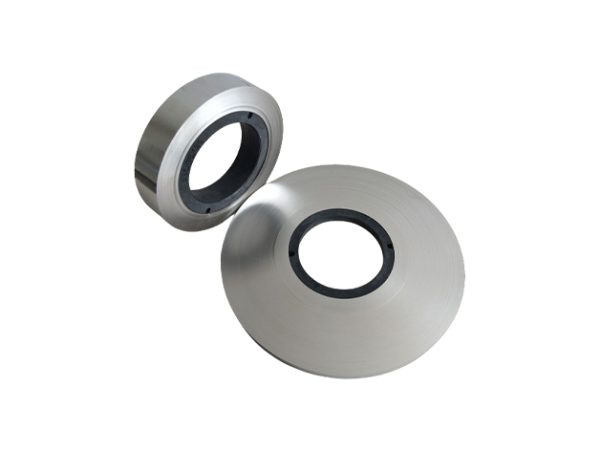

Fe-based Amorphous Alloy Ribbon
Amorphous alloys ribbon is a new type of energy-saving metallic glass material without crystalline structure, which is made of molten metal that is rapidly cooled at a rate of about one million degrees per second.
- Trade Mark: SHOUCORE
- Cores Size: Standard or Customized Dimensions
- Certificates: ISO 9001:2015, RoHS, REACH
- Payment Terms: T/T or L/C
- Delivery time: Samples: 3~5 days; Batches: 7~30 days
Fe-based Amorphous Alloy Ribbon:
Amorphous Alloy Ribbon is a new type of energy-saving metallic glass material without crystalline structure, which is made of molten metal that is rapidly cooled at a rate of about one million degrees per second. During this process, the molten metal forms the amorphous strip with thickness 26±2um. It is completely different from the silicon steel with crystalline structure, and the electrical conductivity is better than conventional glass materials.
Benefits：
1) The iron-based amorphous alloys with High Saturate induction (1.56T) and High magnetic permeability(＞10000), which can minimumize the size of components.
2) Amorphous alloys with less core loss only has 1/5 core loss of silicon steel, and the core loss can lower as 100w/kg at 10KHz, 500mT, and it reduces the temperature rise very well.
3)The coercive force (Hc) could lower as 5.0A/m, and the efficiency of components could be improved.
4)The saturation magnetostriction close to zero, so it can lower the working noise effectively.
5)The properties of amorphous alloys is stable at -50℃~150℃.
Physical Properties：
| Item | Performance |
|---|---|
| Material Grade | 1K101 |
| Material Ingredient | Fe, Si, B |
| Material Thickness | 30±5um |
| Saturate induction Bs(T) | 1.56 |
| Curie temperature Tc（℃) | 415 |
| Crystallization Tx（℃) | 540 |
| Coercivity Hc（A/m) | <4 |
| Hardness（Hv） | 960 |
| Stacking Factor | ﹥84% |
| Magnetostriction (λs) | 27×10 -6 |
| Density ρ（g/cm3） | 7.18 |
| Resistivity δ（μΩ.cm） | 130 |
Specifications:
| Material | Model | Width(mm) | Thickness(um) |
|---|---|---|---|
| Amorphous Alloy Ribbon | 1k101 | 5 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 6.5 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 8 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 10 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 15 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 20 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 25 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 30 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 35 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 40 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 45 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 50 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 55 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 60 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 65 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 70 | 26±2 |
| Amorphous Alloy Ribbon | 1k101 | 80 | 26±2 |
Note: Amorphous Alloy Ribbon can be customized according to the specific size and performance requirements of users.
