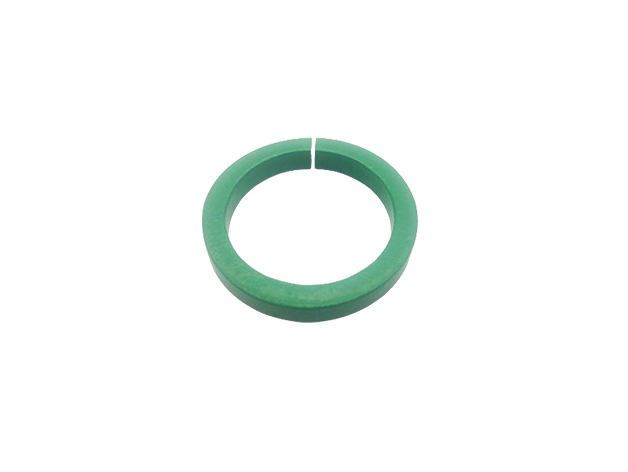

Amorphous Toroidal Air Gap Cores
The toroidal magetic cores with air gap is based on the Fe-based amorphous alloys, It has excellent characteristics of constant inductance and anti-DC magnetic bias, and the loss is lower.
- Trade Mark: SHOUCORE
- Cores Size: Standard or Customized Dimensions
- Certificates: ISO 9001:2015, RoHS, REACH
- Payment Terms: T/T or L/C
- Delivery time: Samples: 3~5 days; Batches: 7~30 days
Amorphous Toroidal Air Gap Cores :
The toroidal magetic cores with air gap is based on the Fe-based amorphous alloys, It has excellent characteristics of constant inductance and anti-DC magnetic bias, and the loss is lower.
Features:
1) High saturation flux density (Bs), low magnetic field strength (Hc) and low loss.
2) Excellent Anti-DC bias property.
3) Good constant inductance characteristics.
Applications:
- DC air conditioner
- Switched – mode power supply (SMPS)
- Uninterrupted Power Supply (UPS)
- Plasma television
- Inverter circuit
Specifications:
| Item No. | Core Dimension IDxODxH(mm) | Finish Dimension IDxODxH (mm) | Le(cm) | Ae(cm2) | Weight(g) |
|---|---|---|---|---|---|
| SC-AGC010 | 10x15x6 | 8.34×17.92×9.22 | 3.92 | 0.12 | 3.4 |
| SC-AGC011 | 11x18x8 | 9.2×20.6×9.7 | 4.55 | 0.22 | 7.39 |
| SC-AGC016 | 16x26x10 | 13.9×28.2×12.9 | 6.59 | 0.41 | 19.12 |
| SC-AGC020 | 20x30x10 | 17.5x33x13.2 | 7.85 | 0.4 | 22.76 |
| SC-AGC025A | 25x40x10 | 22.3×43.6×14.3 | 10.2 | 0.6 | 44.39 |
| SC-AGC025B | 25x40x15 | 21.3×43.9×18.7 | 10.2 | 0.9 | 66.58 |
| SC-AGC025C | 25x40x20 | 21.4×44.64×24.72 | 10.2 | 1.2 | 88.78 |
| SC-AGC032 | 32x50x15 | 28.88×53.64×18.42 | 12.87 | 1.08 | 100.8 |
| SC-AGC035 | 35x55x30 | 32.02×57.77×34.18 | 13.34 | 1.8 | 174.2 |
| SC-AGC040 | 40x64x30 | 36.9×67.8×34.1 | 16.38 | 2.88 | 340.9 |
| SC-AGC045 | 45x65x30 | 39.9×69.5×33.4 | 17.27 | 2.4 | 300.4 |
Note: The Amorphous Air Gap Cores can be customized according to the specific size and performance requirements of users.
