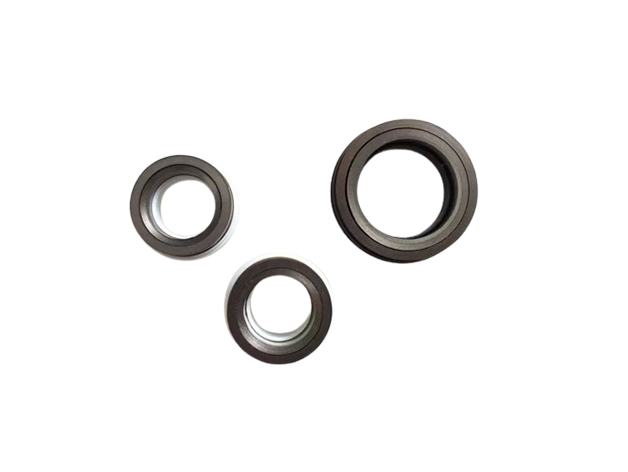

Amorphous & Nanocrystalline Anti DC Hybrid Cores

The Anti DC Dual Cores be made by amorphous alloys and nanocrystalline alloys, which could detect accurately the AC signal, and resist the DC, and it could meets the high precision and linearity requirements.

  • Check Mark Trade Mark: SHOUCORE
  • Check Mark Cores Size: Standard or Customized Dimensions
  • Check Mark Certificates: ISO 9001:2015, RoHS, REACH
  • Check Mark Payment Terms: T/T or L/C
  • Check Mark Delivery time: Samples: 3~5 days; Batches: 7~30 days
Categories: , Tags: , , ,

Amorphous & Nanocrystalline Anti DC Hybrid Cores:

The Anti DC Hybrid Cores be made by amorphous alloys and nanocrystalline alloys, which could detect accurately the AC signal, and resist the DC, and it could meets the high precision and linearity requirements.

Features:

    1. High performance of DC resistance
    2. Excellent of temperature characteristic
    3. With high precision, the grade range 0.5–0.1, current range 1.5–200A

Applications:

  • Energy meters
  • Electric power system measurement
  • Current Transformer

Specifications：

Part No. Core Dimensions Finish Dimensions Accuracy DC Compliance
IDxODxH(mm) IDxODxH(mm)
SC-ANDC-142010 14x20x10 12.1×22.7×11.9 0.5-0.1 Class 30A
SC-ANDC-162110 16x21x10 13.39×23.7×12.17 0.5-0.1 Class 40A
SC-ANDC-162310 16x23x10 14.1×25.1×12.48 0.5-0.1 Class 60A
SC-ANDC-172210 17x22x10 15.26×24.46×12.45 0.5-0.1 Class 30A
SC-ANDC-172408 17x24x8 15.08×26.08×9.92 0.5-0.1 Class 80A
SC-ANDC-172510 17x25x10 15.28×27.88×13 0.5-0.1 Class 65A
SC-ANDC-172808 17x28x8 15.2×29.7×10.3 0.5-0.1 Class 60A
SC-ANDC-182310 18x23x10 16.8×24.7×11.1 0.5-0.1 Class 100A
SC-ANDC-182405 18x24x5 16.26×25.9×7.2 0.5-0.1 Class 100A
SC-ANDC-182410 18x24x10 15.9×26.9×12.4 0.5-0.1 Class 100A
SC-ANDC-192310 19x23x10 17x25x12.1 0.5-0.1 Class 100A
SC-ANDC-192610 19x26x10 16.66×28.82×12.48 0.5-0.1 Class 100A
SC-ANDC-203008 20x30x8 18.06×32.7×9.8 0.5-0.1 Class 100A
SC-ANDC-212910 21x29x10 19.05×32.25×13.84 0.5-0.1 Class 200A
SC-ANDC-233310 23x33x10 20.3×36.4×13.5 0.5-0.1 Class 200A

Note: Anti DC Hybrid Cores can be customized according to the specific size and performance requirements of users
