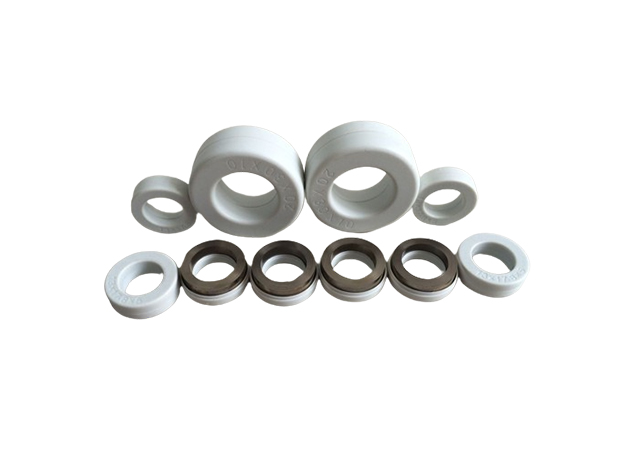

Amorphous Alloy Ring Iron Cores
Ring Cores are made from Fe-based amorphous alloys, which provides the better electrical conductivity properties and lower core losses than other soft magnetic materials.
- Trade Mark: SHOUCORE
- Cores Size: Standard or Customized Dimensions
- Certificates: ISO 9001:2015, RoHS, REACH
- Payment Terms: T/T or L/C
- Delivery time: Samples: 3~5 days; Batches: 7~30 days
Amorphous Alloy Ring Iron Cores :
Ring Cores are made from Fe-based amorphous alloys, which provides the better electrical conductivity properties and lower core losses than other soft magnetic materials.
Features:
1) High saturate induction (Bs 1.56T)
2) Lower core loss
3) Lower coercivity force (Hc)
4) Excellent temperature stability – from -55 ℃ to 130 ℃.
5) Lower manufacturing costs.
Physical Properties:
| Item | Performance |
|---|---|
| Material Grade | 1K101 |
| Material Ingredient | Fe, Si, B |
| Material Thickness | 30±5um |
| Saturate induction Bs(T) | 1.56 |
| Curie temperature Tc（℃) | 415 |
| Crystallization Tx（℃) | 540 |
| Coercivity Hc（A/m) | <4 |
| Hardness（Hv） | 960 |
| Stacking Factor | ﹥84% |
| Magnetostriction (λs) | 27×10 -6 |
| Density ρ（g/cm3） | 7.18 |
| Resistivity δ（μΩ.cm） | 130 |
Applications:
- Differential Mode Choke
- Mid Frequency Transformer
- PFC Choke
- Car Audio output inductor
- Solar Inverter Reactor
Specifications:
| Part No. | Core Size (mm) | Finished Size (mm) | Le | Ae | ||||
| OD | ID | HT | OD | ID | HT | (mm) | (mm2) | |
| SC-AMC-080505 | 8 | 5 | 5 | 10 | 3.5 | 7.5 | 20. 1 | 5.63 |
| SC-AMC-100505 | 10 | 5 | 5 | 12 | 3.5 | 7.5 | 22.7 | 9.38 |
| SC-AMC-181108 | 18 | 11 | 8 | 21 | 9 | 10 | 44.7 | 21 |
| SC-AMC-181205 | 18.5 | 12.5 | 5 | 19. 1 | 12.3 | 5.7 | 48. 1 | 11.25 |
| SC-AMC-181206 | 18 | 12 | 6.5 | 21 | 10 | 8.5 | 46.5 | 14.63 |
| SC-AMC-181210 | 18 | 12 | 10 | 19 | 10.5 | 11.5 | 46.5 | 22.5 |
| SC-AMC-191205 | 19.5 | 12. 1 | 5 | 21.6 | 11.5 | 6.2 | 48.7 | 13.88 |
| SC-AMC-201208 | 20 | 12 | 8 | 21.8 | 10.7 | 10 | 49.2 | 24 |
| SC-AMC-211408 | 21 | 14 | 8 | 23 | 12 | 9. 1 | 54.2 | 21 |
| SC-AMC-211410 | 21.5 | 14.4 | 10.4 | 23.5 | 12.9 | 12.3 | 55.6 | 27.69 |
| SC-AMC-211508 | 21 | 15 | 8 | 23.9 | 13.4 | 10 | 56 | 18 |
| SC-AMC-211510 | 21 | 15 | 10 | 23.7 | 12.8 | 12.3 | 56 | 22.5 |
| SC-AMC-211610 | 21 | 16 | 10 | 25 | 14 | 12.3 | 57.8 | 18.75 |
Note：1) Amorphous Magnetic Ring Cores can be customized according to the specific size and performance requirements of users
2) Packing Method: Plastic Case, Epoxy Resin Coating or Stainless Steel Case.
